Lock and fitting dimensions
| Specifications | Dimensions from model documentation |
|---|---|
| Backset | 25 mm |
| Faceplate width | 25 mm |
| Spindle specification | 8 mm |
| Handle-to-cylinder centre distance | 85 mm |
Check the backset, centre distance, faceplate and mounting points against the specific model drawing.

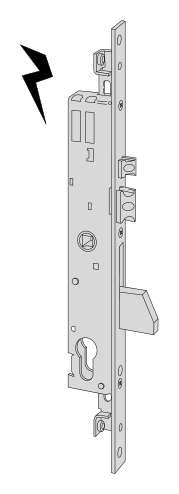

Browse related directorySpecifications
- Product series
- 16325
- Backset
- 25 mm
- Applicable door construction
- Grille door
- Body construction
- Electric bolt and latch
- Faceplate width
- 25 mm
- Case material
- Galvanized steel
- Faceplate material
- Stainless steel
- Spindle specification
- 8 mm
- Additional locking-point interface
- M8 Threaded bushings
- Handle-to-cylinder centre distance
- 85 mm
- Rated supply
- 12 V AC
- Catalogue current
- 3.1 A
- Latch and auxiliary plunger adjustment range
- 10.5–16.5 mm
Selecting construction and installation dimensions
This row of 16325 has a fixed backset of 25 mm. Check the distance from the door-edge faceplate reference to the cylinder centre axis; overall case depth cannot substitute for it. This is an electric configuration; the catalogue gives supply 12 V AC and current 3.1 A; the adjustment range of the latch and auxiliary plunger is 10.5–16.5 mm.
Electrical specifications of electric versions are only for identification and checking matching components; this page does not provide wiring or control-system installation instructions. Additional locking points use M8 threaded bushings; both accessory interfaces and installation positions must match.
The handle-to-cylinder centre distance is 85 mm; this and the 25 mm backset are installation dimensions in different directions. Check cylinder length and trim on both sides separately for the actual door.
Limitations
- The backset diagram only explains the measurement reference from the faceplate to the cylinder axis; it is not an outline, drilling or installation drawing.
- Check cylinders, extension rods, strikes and other accessories against the specific model; accessories listed in the catalogue as available on request are not standard equipment.
- Series certification or suitability does not establish that any complete door currently meets the corresponding grade.
Sources
CISA 2026 English catalogue, PDF page 177 / printed page 173Manufacturer documents are provided in their original language.
