Name: CISA 116425350 Electric rotating-bolt multipoint lock (Backset 35 mm / Centre distance 85 mm)
Brand: CISA

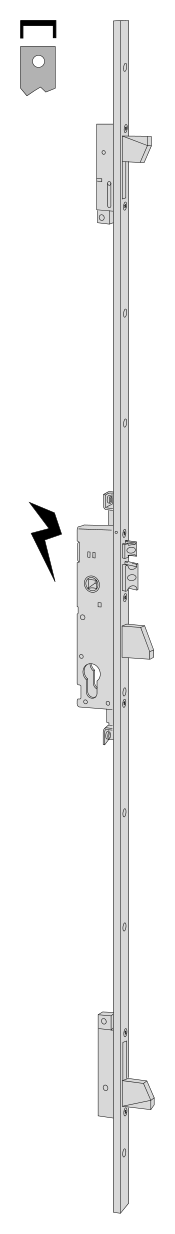

CISA 116425350 — Official series illustration, not a photo of this exact size variant; consult model specifications. — Official series illustration, not a photo of this exact size variant; consult model specifications.Image source

CISA 116425350 faceplate width 24 mm, measured transversely between the two outer edges — Our local dimension diagram is drawn from the faceplate width in the catalogue; the upper and lower break lines do not indicate total length; this is not a product view or installation drawing.

Lock and fitting dimensions

Dimensions from model documentation
Specifications	Dimensions from model documentation
Faceplate width	24 mm
Centre distance	85 mm
Faceplate length	2600 mm

Check the backset, centre distance, faceplate and mounting points against the specific model drawing.

Browse related directory

Specifications

Series: Rotating-bolt multipoint lock
Drive type: Electric
Locking construction: Three lateral bolts and adjustable latch
Backset E: 35 mm
Faceplate width: 24 mm
Faceplate profile: U-profile
Faceplate material: Black-painted steel
Cylinder interface: Euro-profile cylinder ordered separately
Centre distance: 85 mm
U-profile cross-section depth: 7 mm
Faceplate length: 2600 mm
Upper-end adjustment: 650 mm
Lower-end adjustment: 150 mm
Rated voltage: 12 V AC
Catalogue current consumption: 3.1 A
Latch adjustment: 10.5–16.5 mm

Installation dimensions and faceplate

This model has backset 35 mm, faceplate width 24 mm and centre distance 85 mm. Match the horizontal backset and vertical centre distance separately; door thickness cannot substitute for either. Faceplate length 2600 mm; permitted adjustment is 650 mm at the upper end and 150 mm at the lower end; these are faceplate configuration data; they do not permit arbitrary shortening or imply automatic compatibility with a door leaf of the same height. The depth of the U-profile cross-section differs from flat-plate thickness; check the door-edge recess against the cross-section.

Locking construction and matching components

The latch positions the door leaf on closing, while the bolt provides locking; during installation, separately check the latch contact surface, bolt strike opening and cylinder operating position.

Match the 12 V AC supply and catalogue consumption of 3.1 A according to the installation instructions; do not substitute DC or assume continuous holding current.

Limitations

The dimension diagram only explains the specified dimensional relationships; it is not a product outline, fixing-hole layout or installation template.
Check strike openings, connectors and suitability for the complete door system against the manufacturer's installation documentation for this model.
